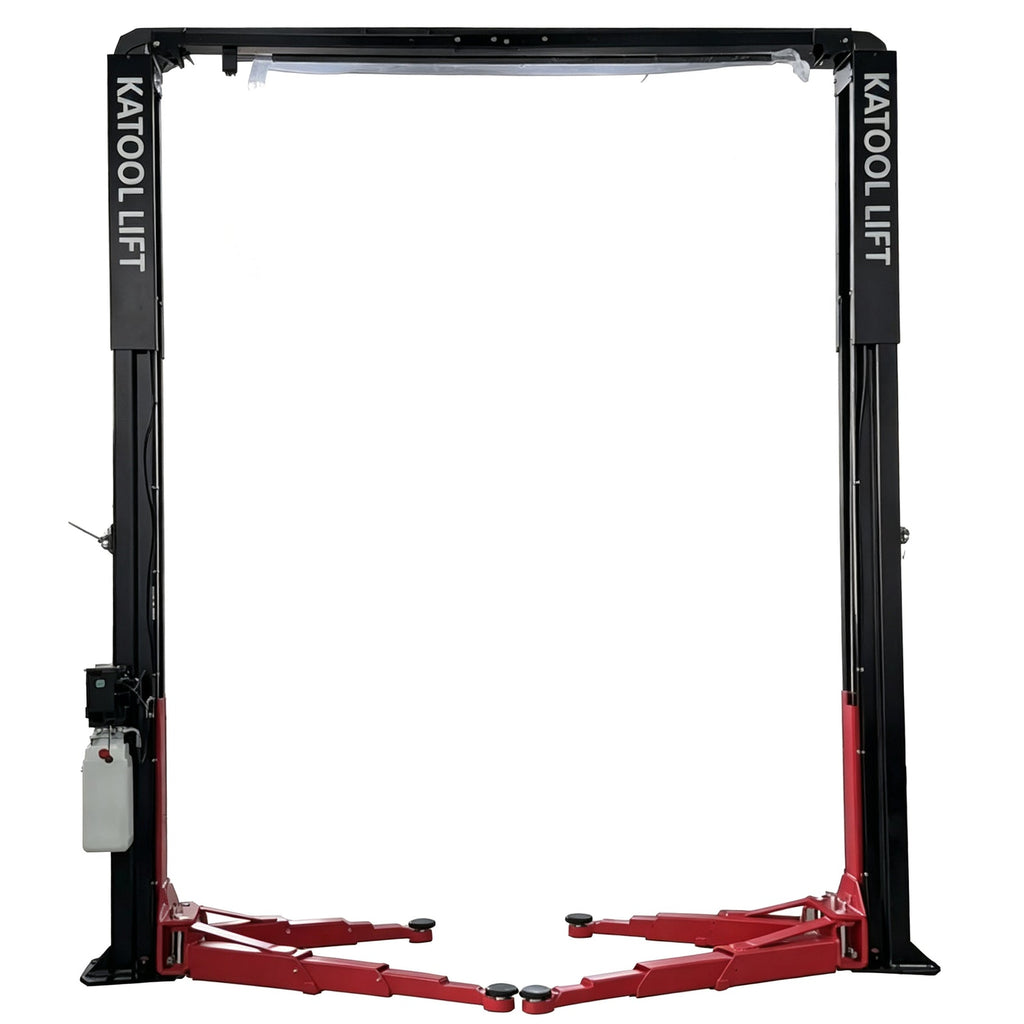

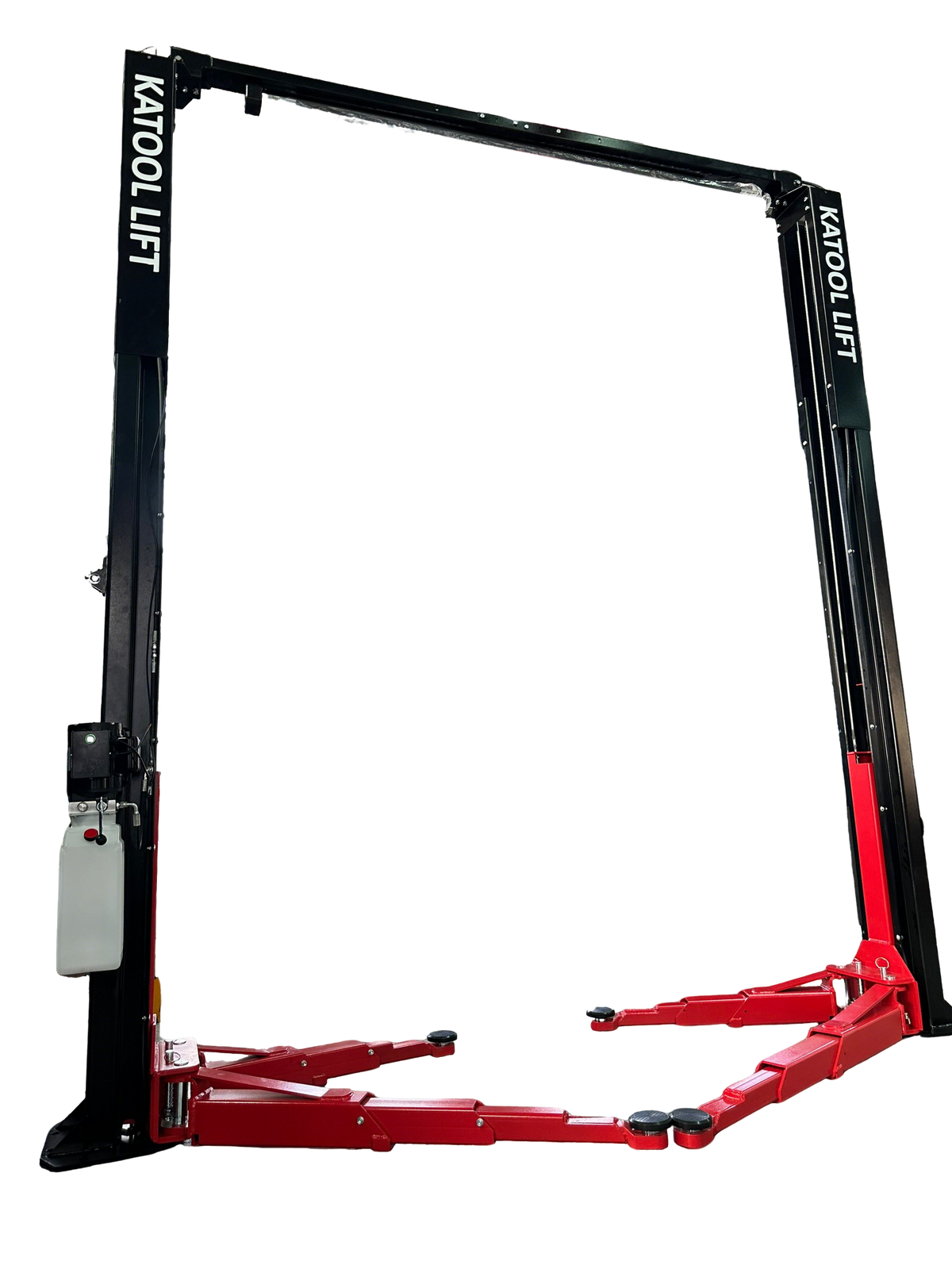

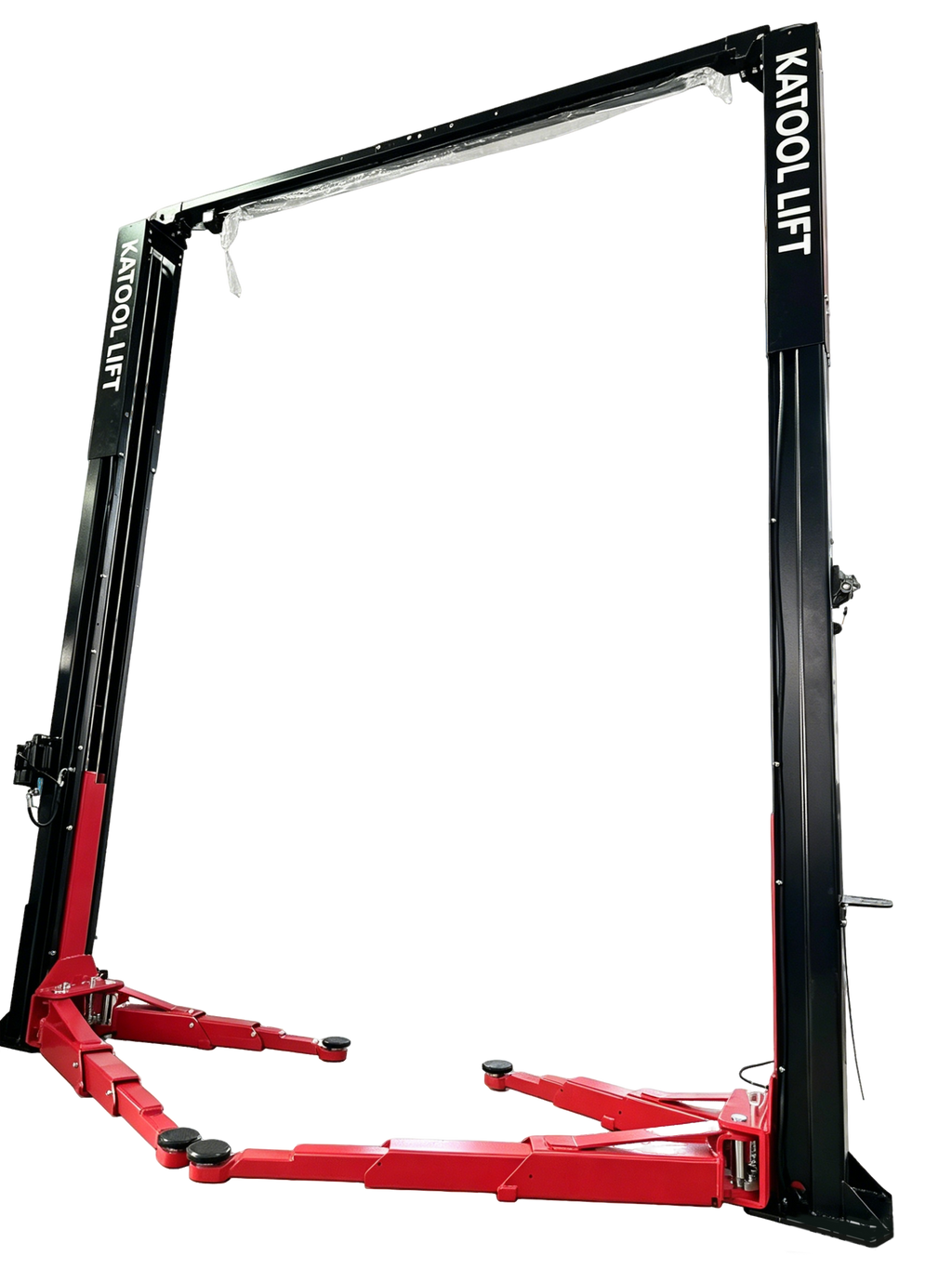

KATOOL KT-ZL110M 10,000 lb Asymmetric 2-Post Lift
The KATOOL KT-ZL110M is a heavy-duty 10,000 lb capacity asymmetric 2-post lift designed for a wide range of cars, SUVs, and light trucks. Its low-profile arms and wide pickup range make it easier to reach factory lifting points on both low-clearance and larger vehicles.
The clear-floor design keeps the work area between the columns unobstructed, while direct-drive hydraulic cylinders provide smooth and reliable lifting for professional shops and home garages.
Features
-
10,000 lb lifting capacity
-
Symmetrical or Asymmetrical Setup – Configurable for either symmetrical or asymmetrical lifting to accommodate a variety of vehicles and service needs.
-

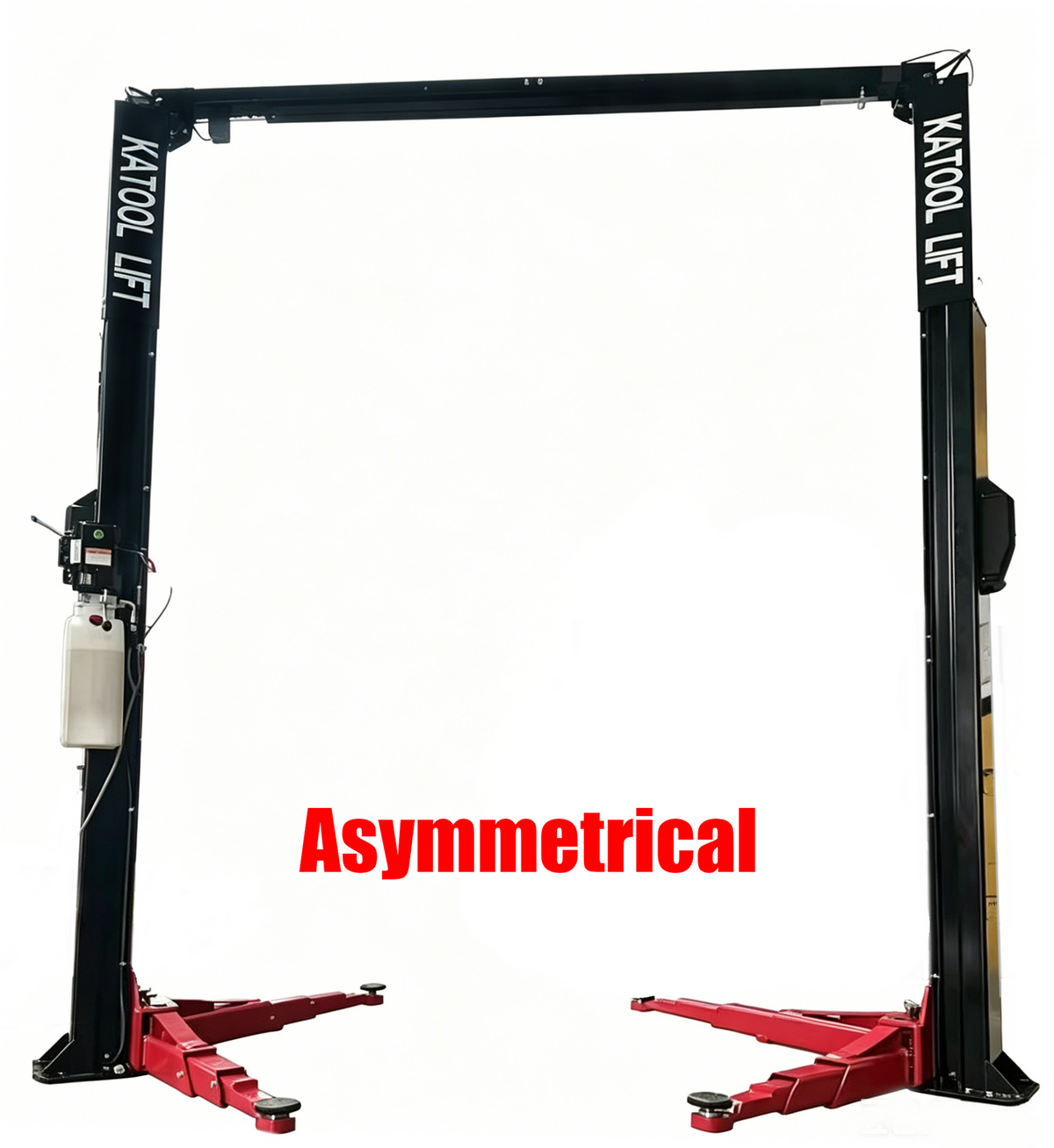

Asymmetric 2-post clear-floor design
-
Wide pickup range for cars, SUVs, and light trucks
-

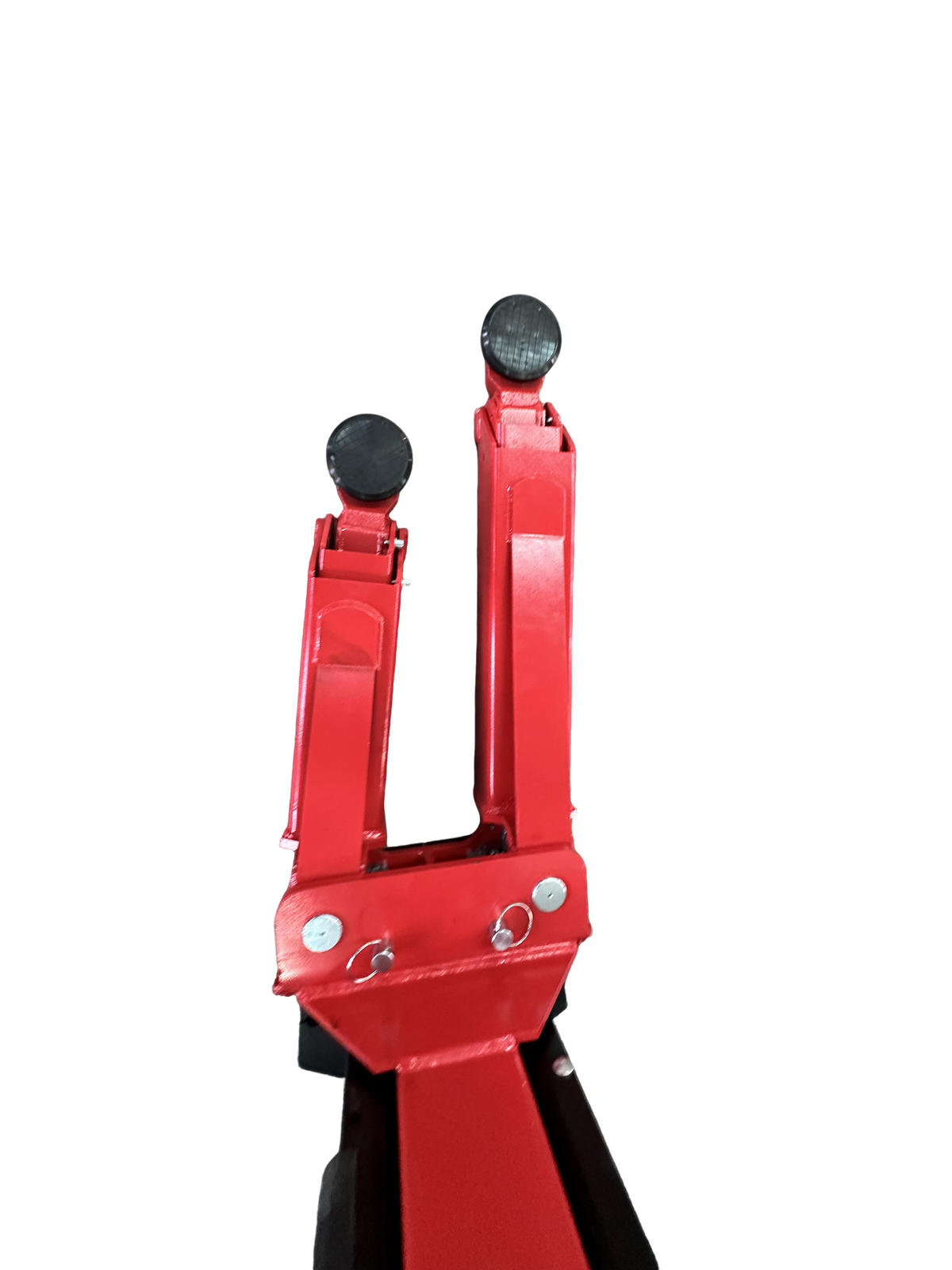

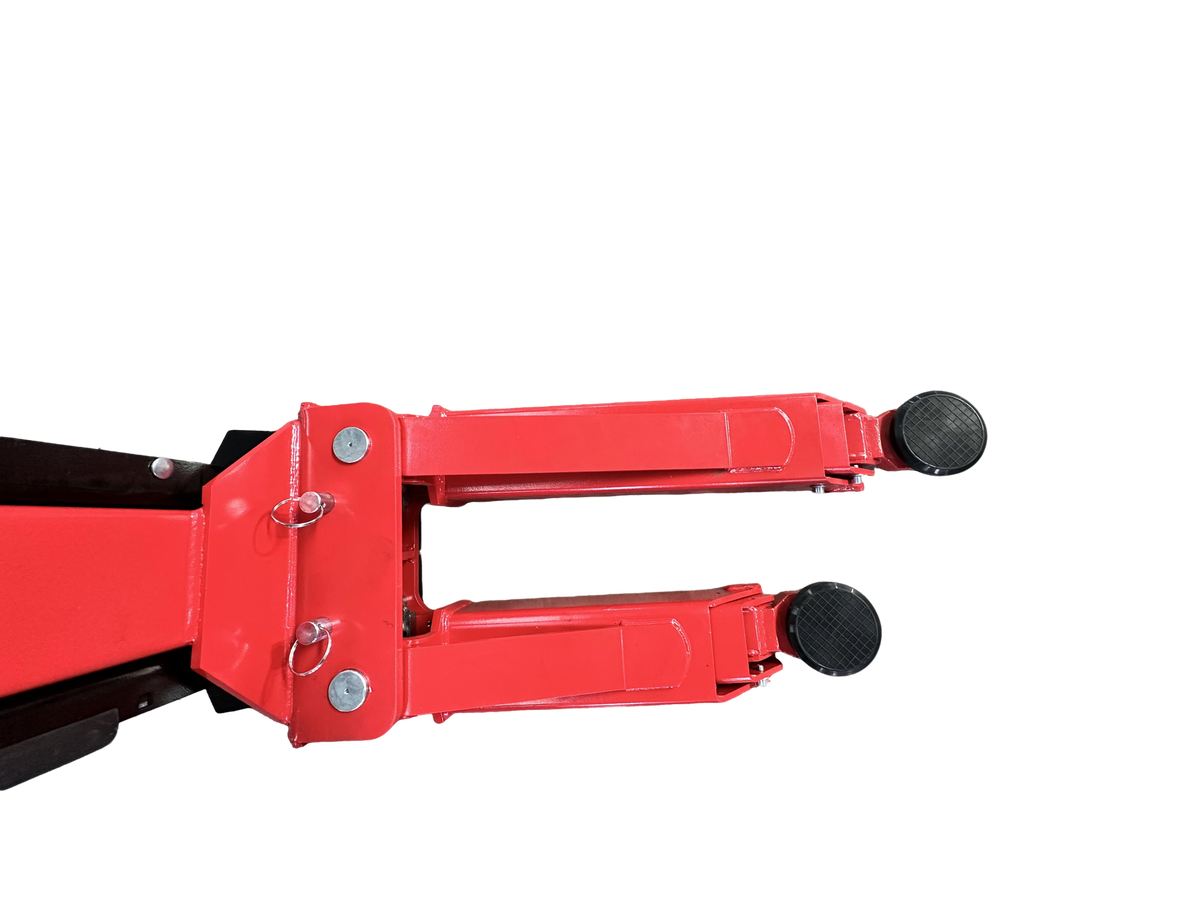

Low-profile arms for low-clearance vehicles and EVs
-

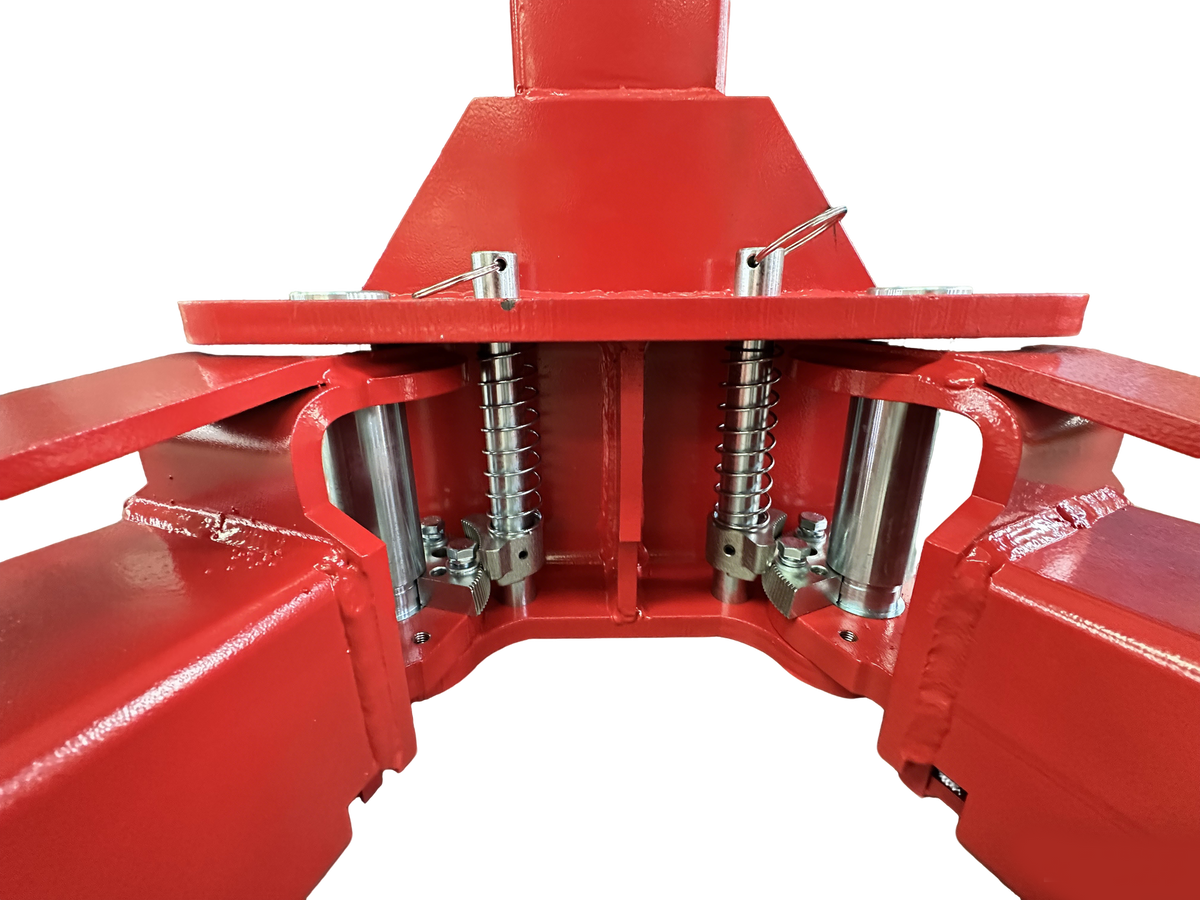

Adjustable lift adapters for easier access to factory lifting points
-

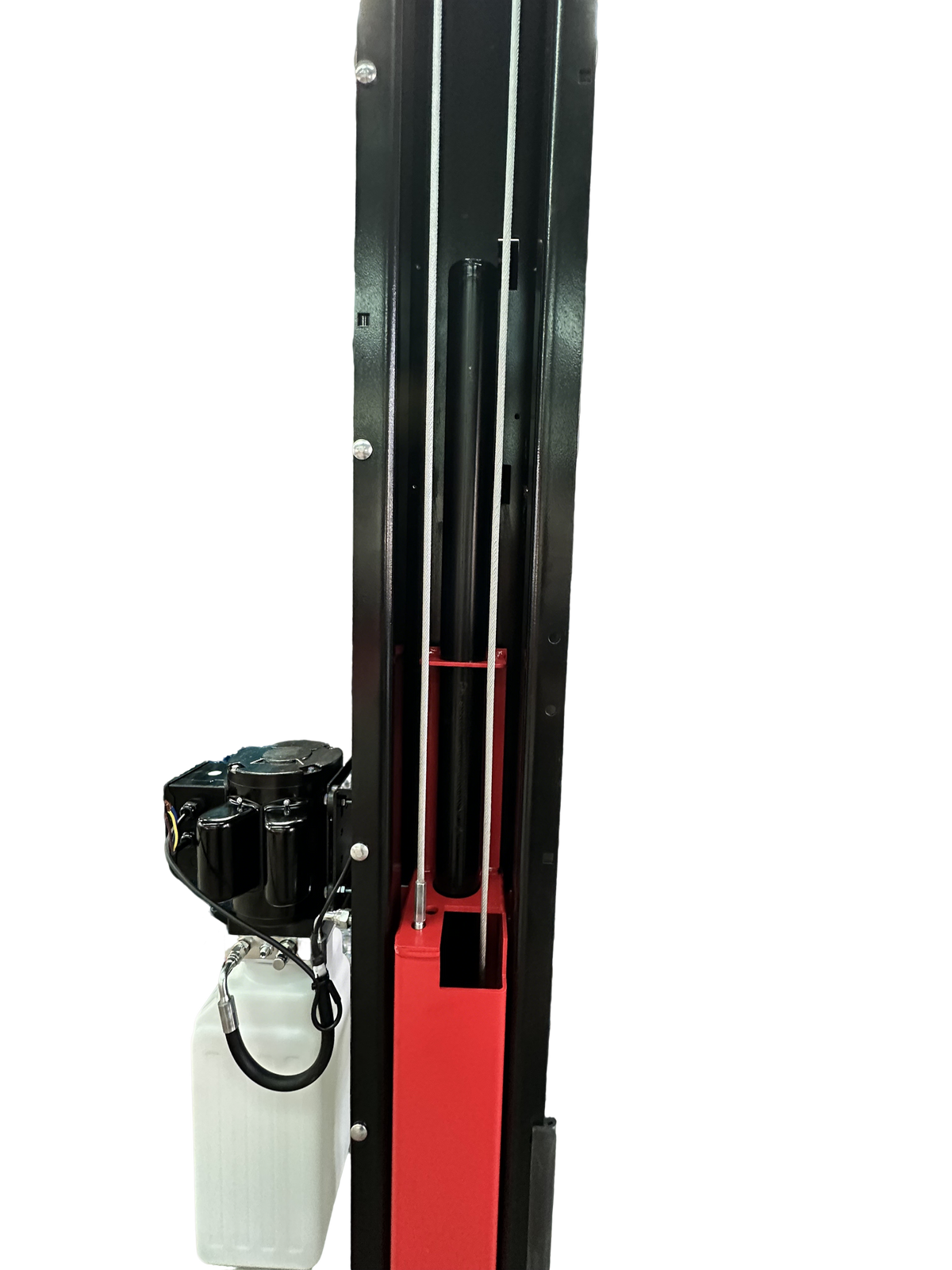

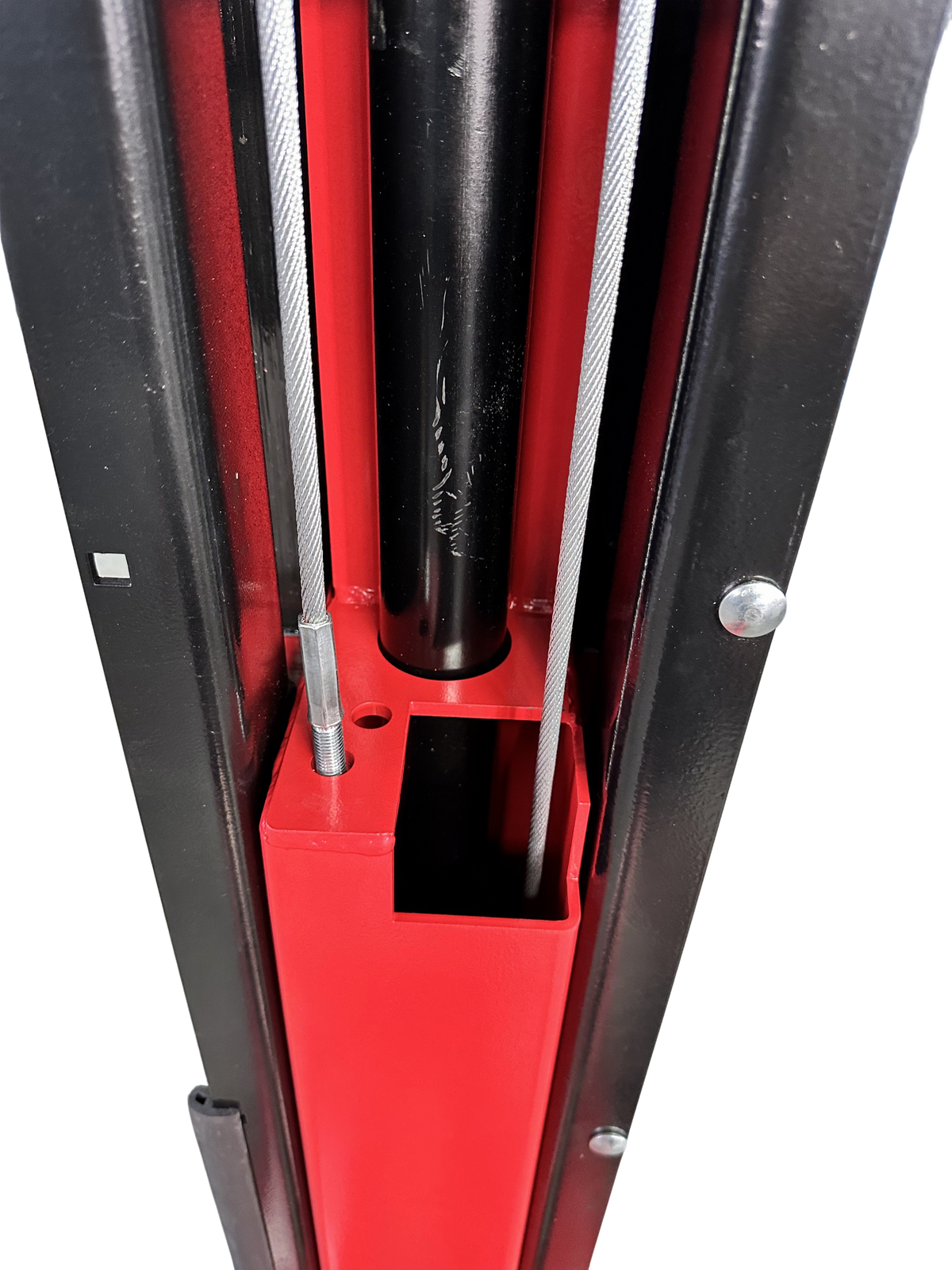

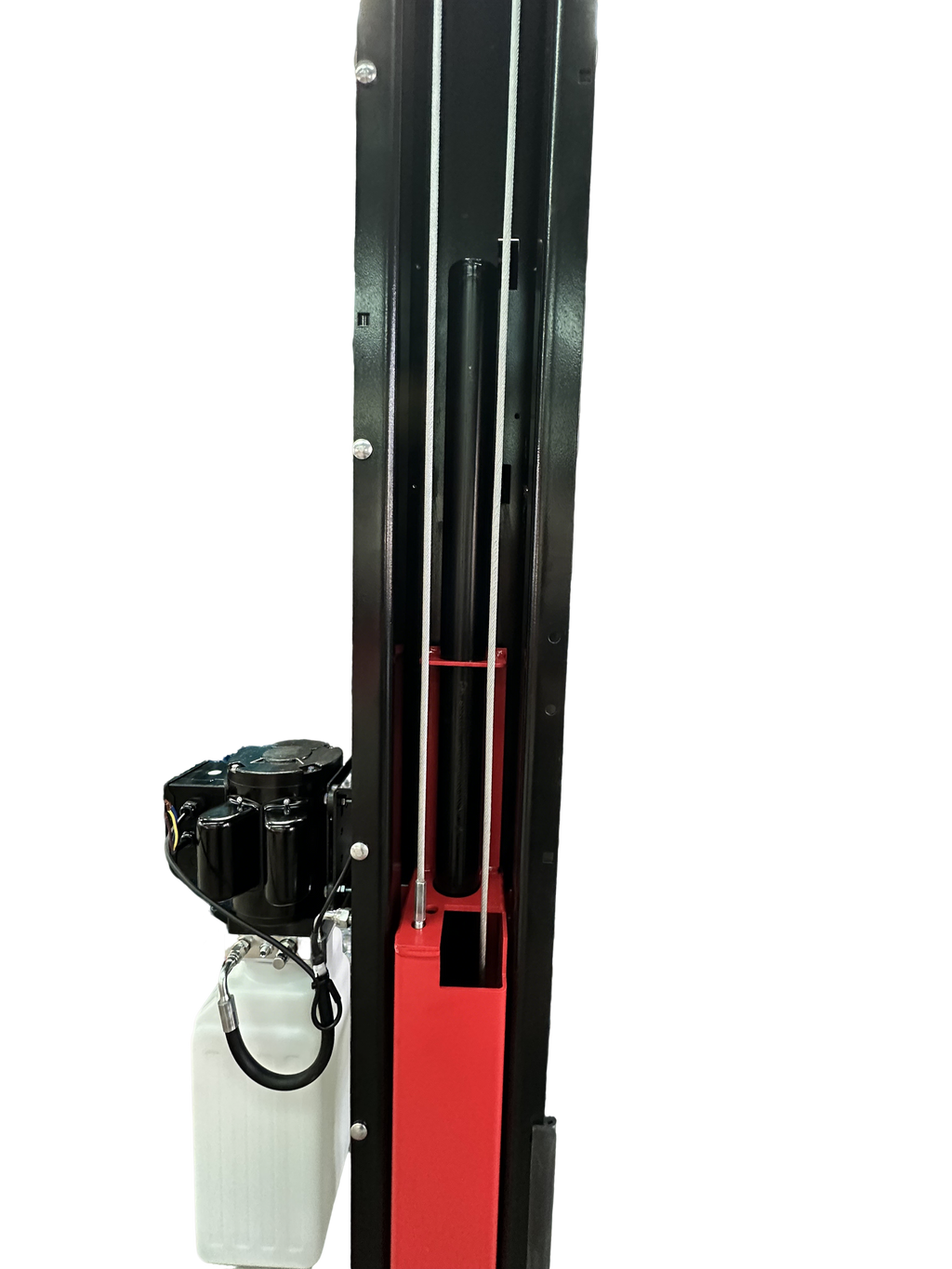

Direct-drive hydraulic lifting system
-

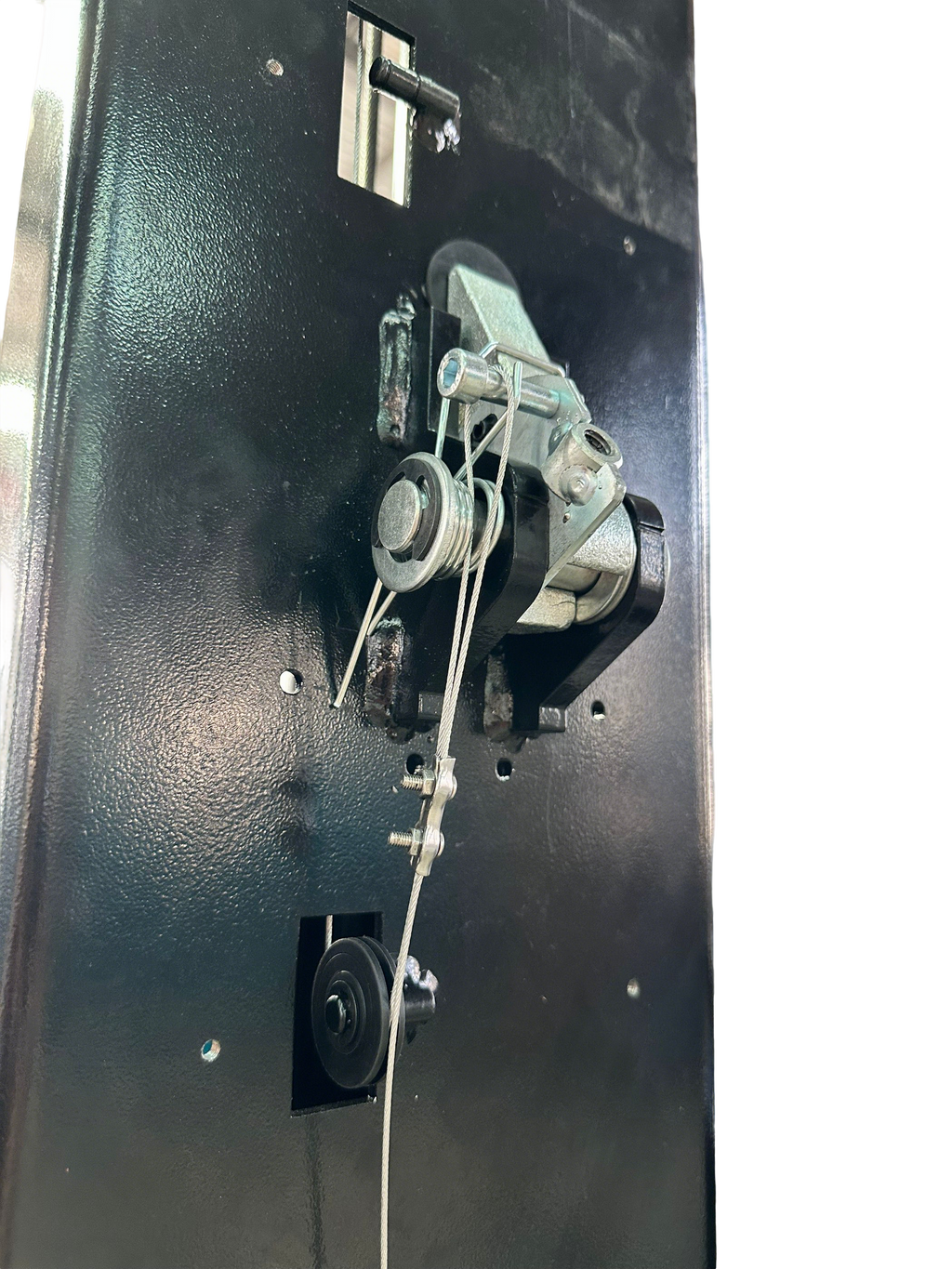

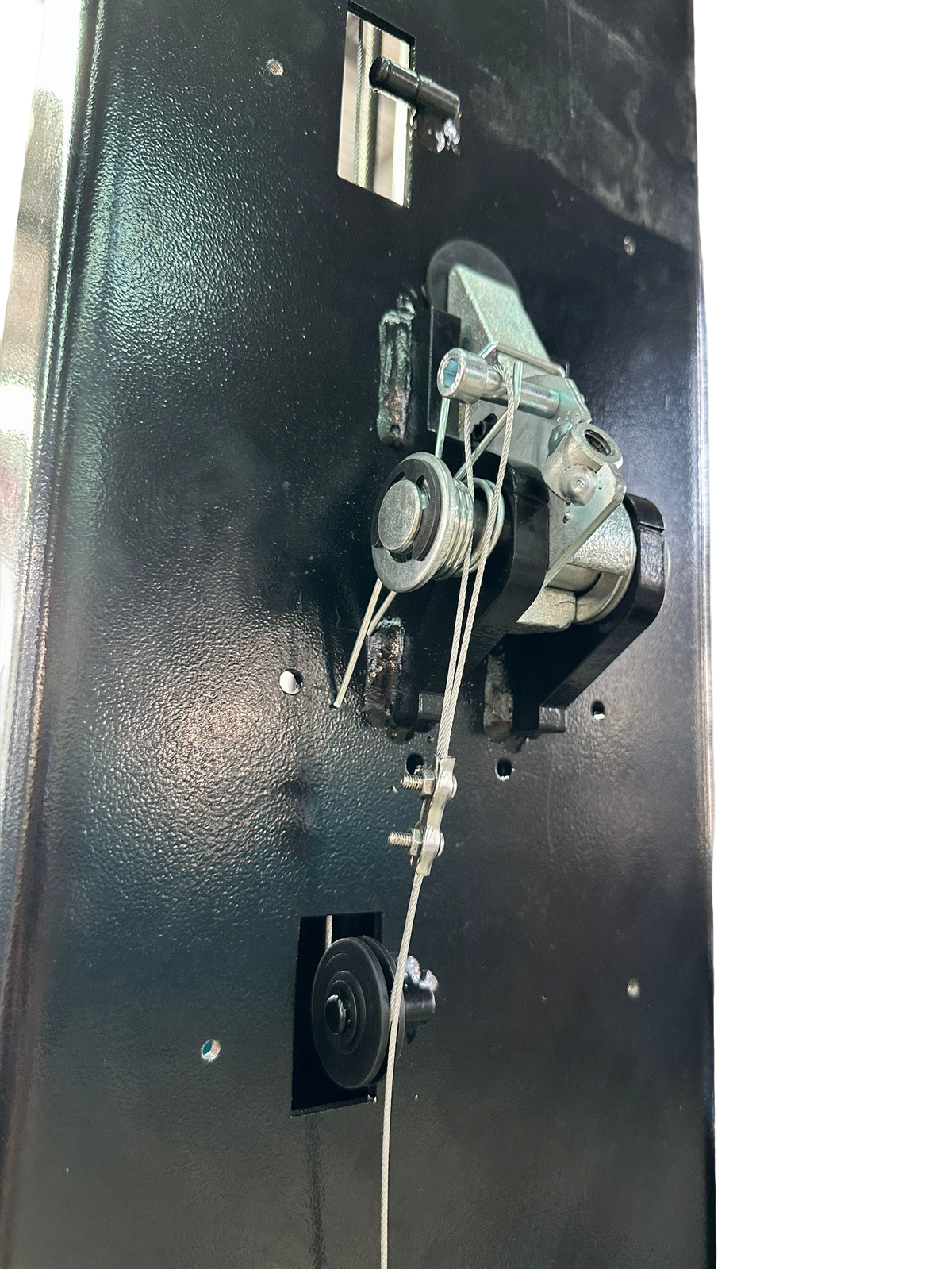

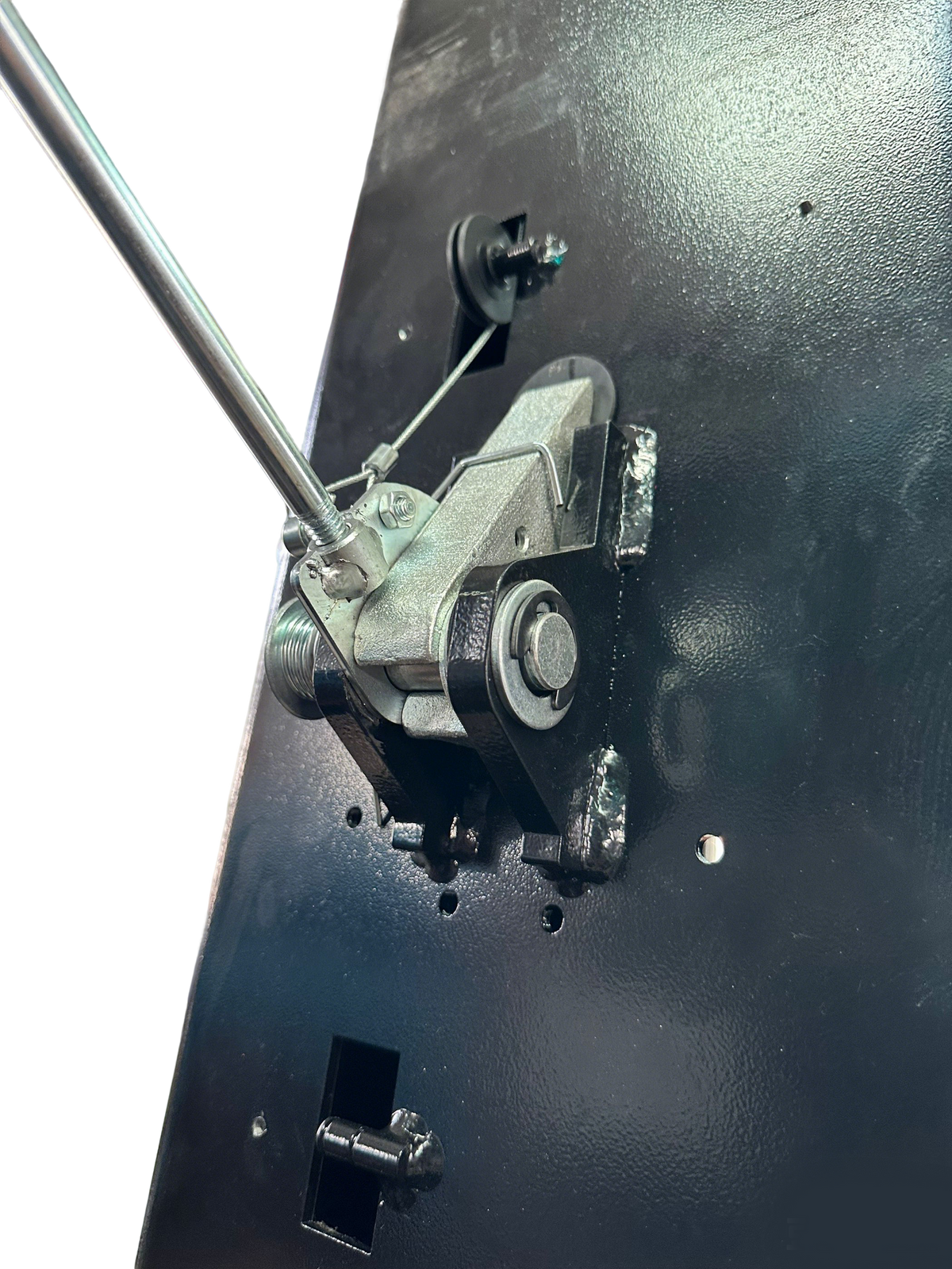

Automatic safety locking system
-
3 HP motor
-
Approximately 36-second lifting time

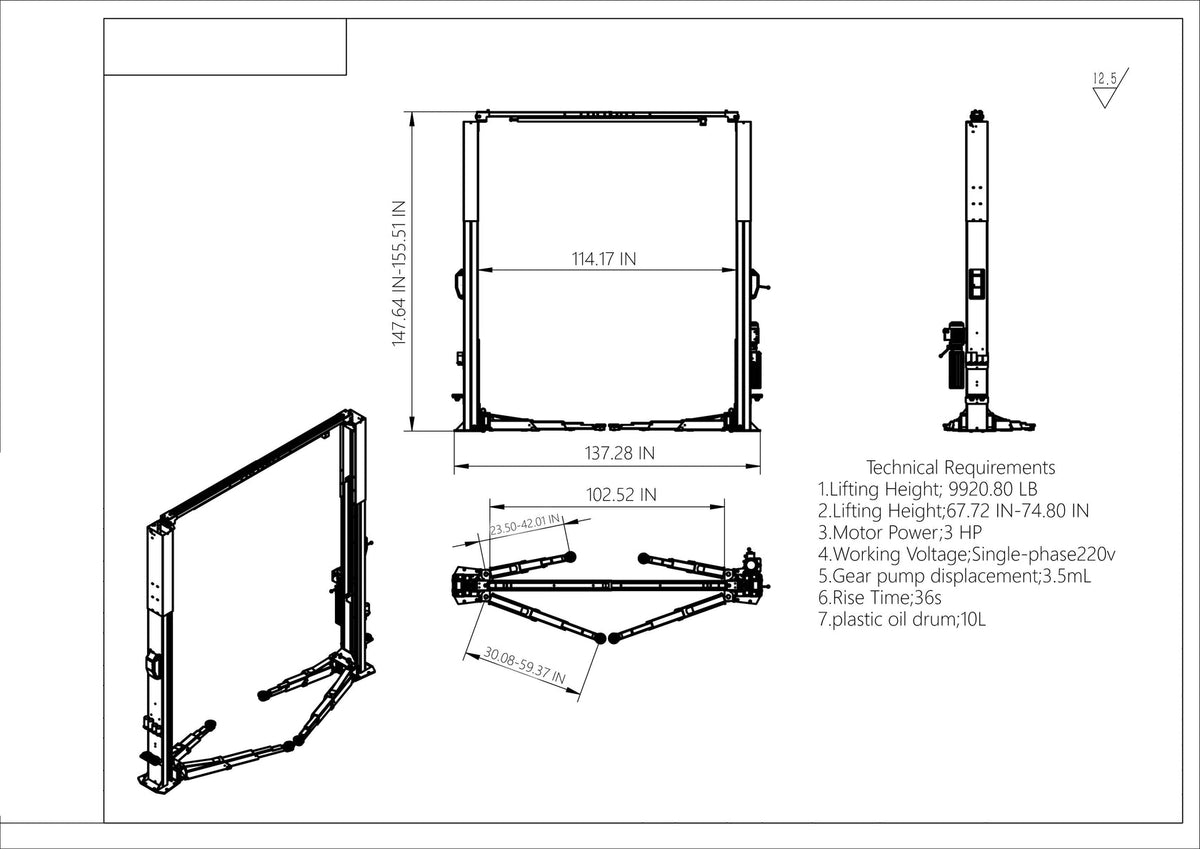

Specifications
| Model |
KT-ZL110M |
| Lift Type |
Overhead Two-Post Lift |
| Lifting Capacity |
10,000 lbs |
| Maximum Lifting Height |
67.72–74.80 in |
| Overall Height |
147.64–155.51 in |
| Overall Width |
137.28 in |
| Inside Column Width |
114.17 in |
| Drive-Through Width |
102.52 in |
| Front Arm Reach |
23.50–42.01 in |
| Rear Arm Reach |
30.08–59.37 in |
| Motor Power |
3 HP |
| Working Voltage |
220V, Single Phase |
| Rise Time |
36 seconds |
| Gear Pump Displacement |
3.5 mL |
| Hydraulic Reservoir |
10 L |
| Shipping Dimensions (L × W × H) |
111.9 × 18.3 × 42.5 in |
| Shipping Weight |
1, |
